Datasheet
Hydr. pressbrake
DENER DD-M 10030
| Machine ID | 1006-92108 |
| Category | Hydr. pressbrake |
| Make | DENER |
| Type | DD-M 10030 |
| New in | 2019 |
| Control | CNC |
| Location | Unterschleissheim |
| Origin | Türkiye |
| Delivery terms | on request |
| Shipment | on request |
| Price | On request |
Documents
Description
Changes and errors in the technical details and information reserved.
*** Demonstration machine ***
Y1 / Y2 servo electronic
Hydraulic stamp clamping (WILA Premium)
Hydraulic die clamping (WILA Premium) including motorized crowning

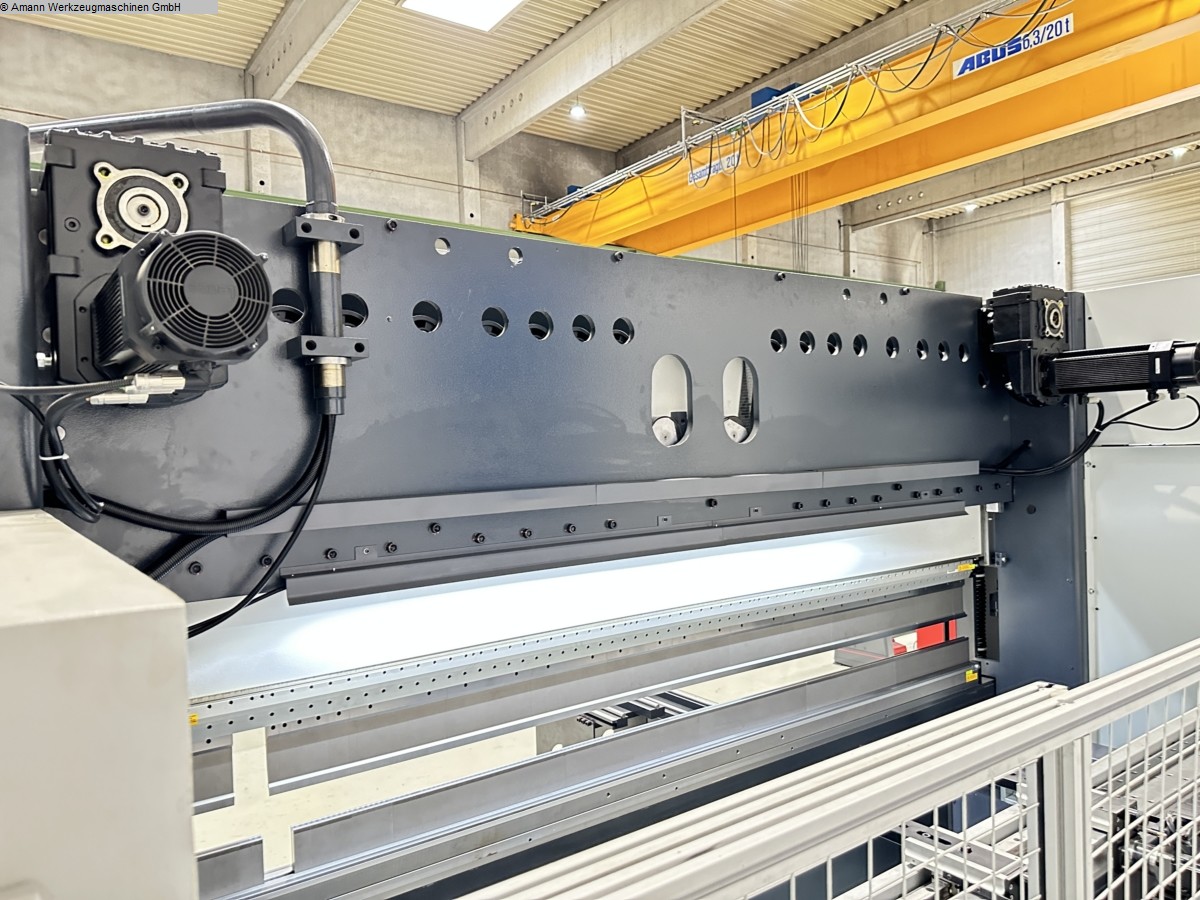

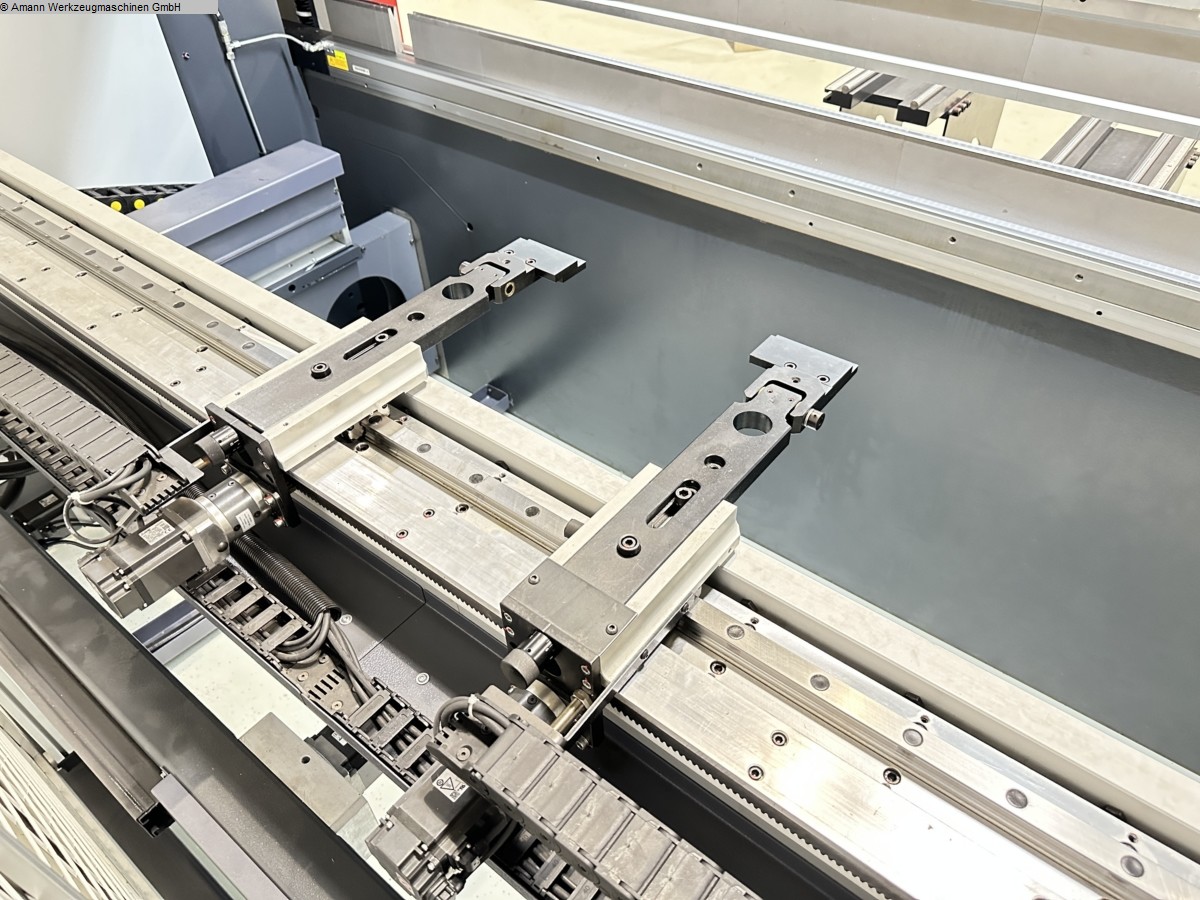

Back gauge system "DENER"
X-; R-; Z1-; Z2- axis
FIESSLER AKAS LC II M Typ 4 (manual adjustment)with box bending
Rolleri quick-change tools segmented:

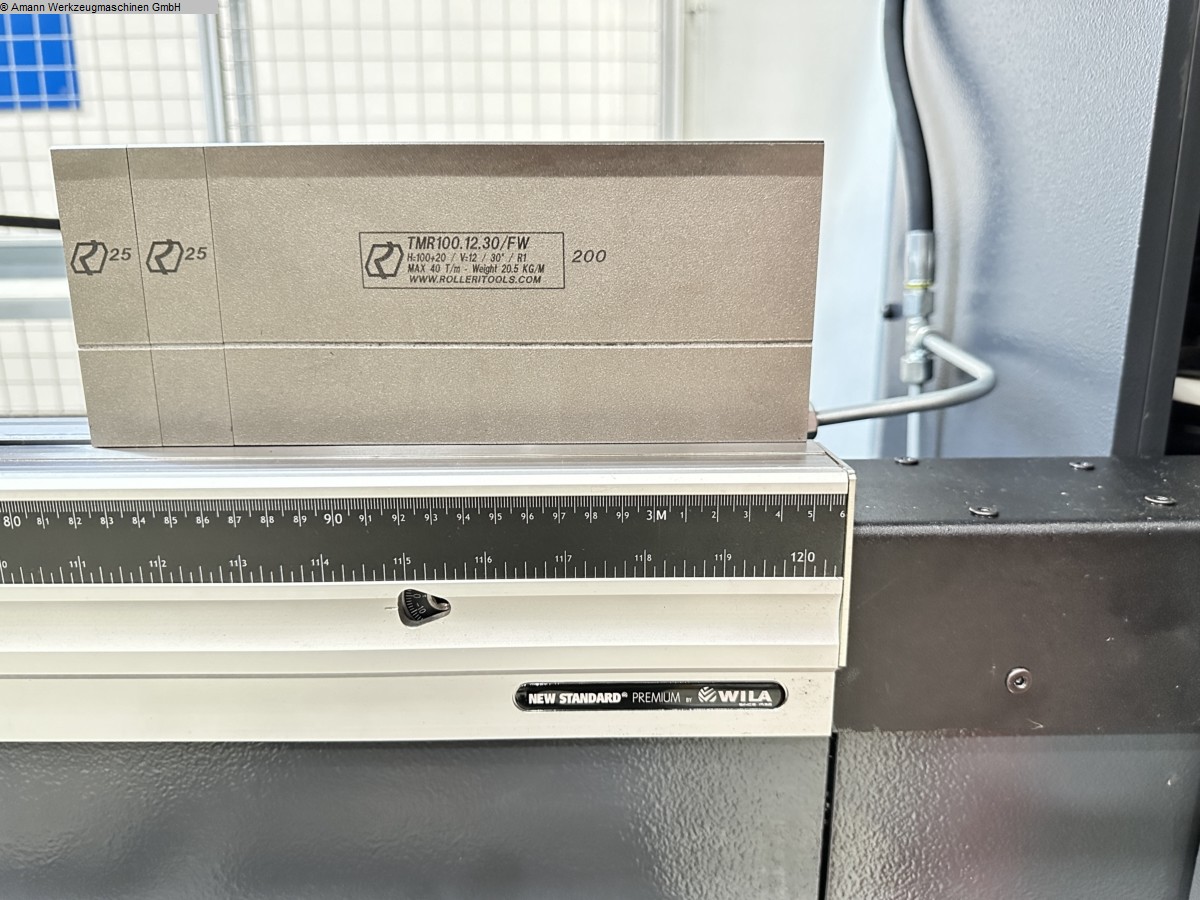

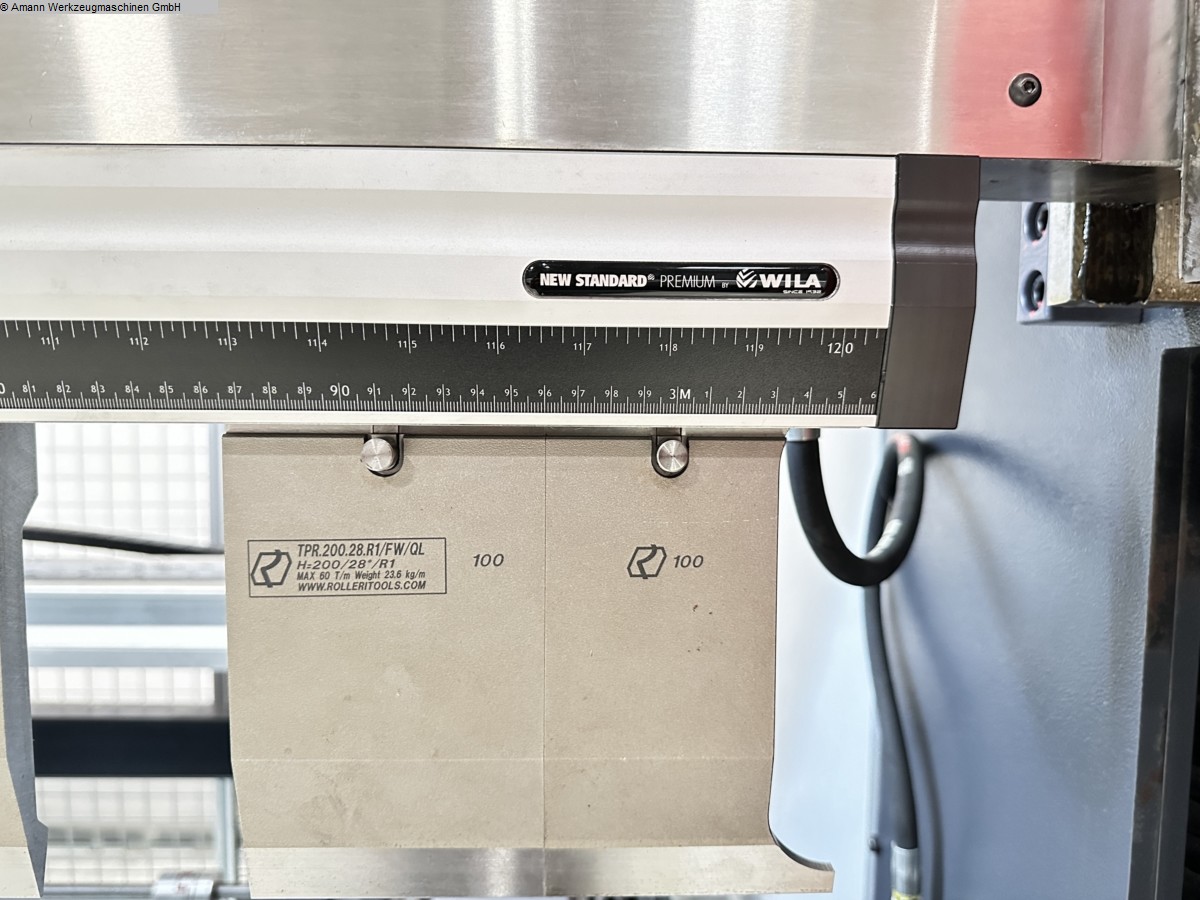

Punch TPR200.28.R1, die TMR100.12.30 total 3.050 mm length
Changes and errors in the technical details and information reserved.
Technical details
| pressure | 100 t |
| chamfer lenght | 3050 mm |
| distance between columns | 3250 mm |
| Control | Delem DA 66T |
| stroke y-axis | 300 mm |
| dayligth | 590 mm |
| ajustment speed | 75 mm/sec |
| Bending Speed | 20 mm/sec. |
| backward speed | 75 mm/s |
| total power requirement | 11 kW |
| weight of the machine ca. | 6,5 t |
| dimensions of the machine ca. | 4,3x2,0x2,9 m |
