Datasheet
Lathe - cycle-controlled

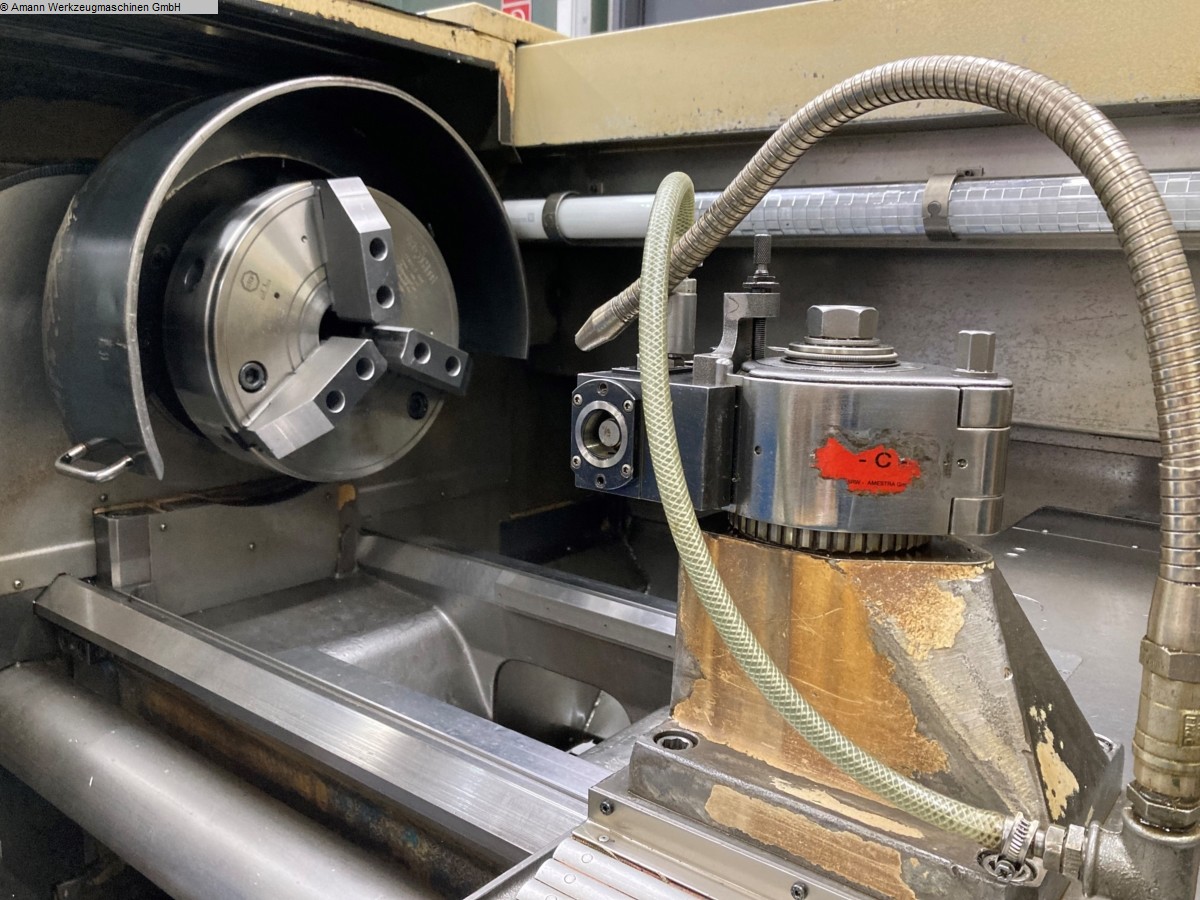

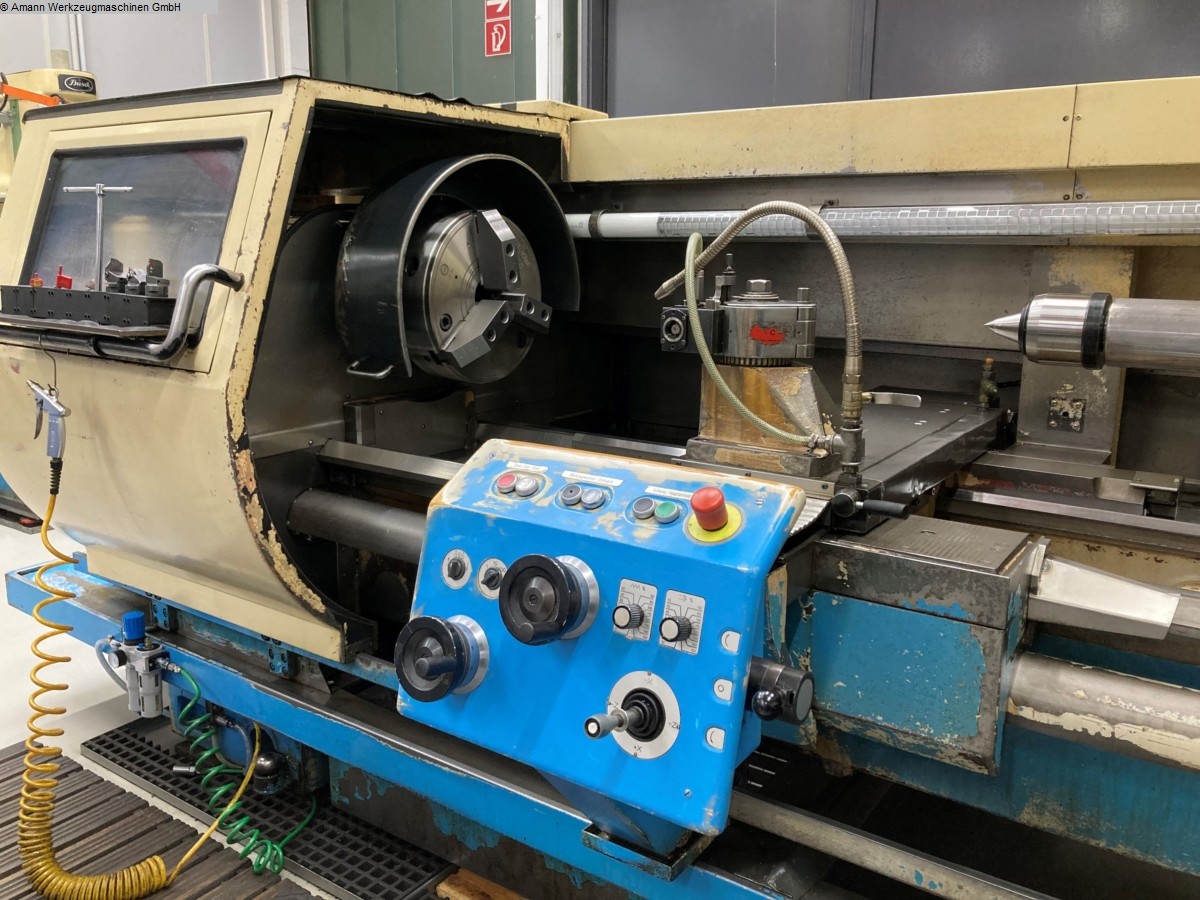

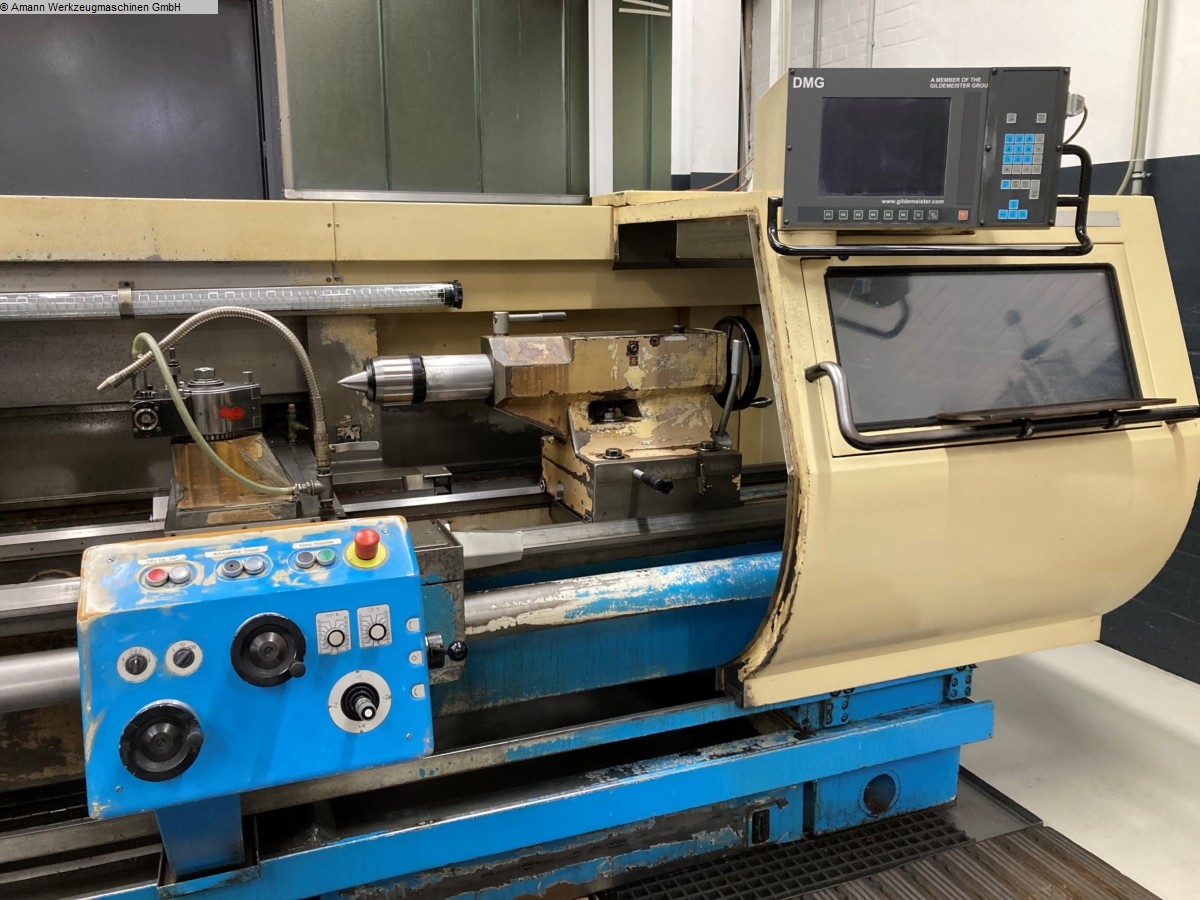

GILDEMEISTER NEF Plus 710
| Machine ID | 1006-52766 |
| Category | Lathe - cycle-controlled |
| Make | GILDEMEISTER |
| Type | NEF Plus 710 |
| New in | 1996 |
| Control | NC |
| Location | Nuremberg |
| Origin | Deutschland |
| Delivery terms | on request |
| Shipment | on request |
| Price | On request |
Documents
Description
Changes and errors in the technical details and information reserved.
Changes and errors in the technical details and information reserved.
Technical details
| turning diameter over bed | 710 mm |
| turning dia. over face-slide | 420 mm |
| turning length | 2000 mm |
| control | Manual Plus 3110 Heidenhain |
| spindle bore | 92 mm |
| main spindle speeds: | 16 - 1800 U/min |
| cross movement | 385 mm |
| spindle head DIN 55027 - Size | 11 |
| spindle diameter in front bearing | 140 mm |
| power capacity at 100 % load | 22,00 kW |
| feed x/z-axis | 1 - 5000 mm/min |
| rapid traverse X-axis | 6,00 m/min |
| rapid traverse Z-axis | 8,00 m/min |
| tailstock quill taper MT | 5 |
| quill stroke | 210 mm |
| diameter of quill | 110 mm |
| total power requirement | 40,00 kW |
| weight of the machine ca. | 5,60 t |
| dimensions of the machine ca. | 5,00 x 3,00 x H2,50 m |
