Datasheet
Welding Robot
REIS SRV16L
| Machine ID | 1006-18050 |
| Category | Welding Robot |
| Make | REIS |
| Type | SRV16L |
| New in | 2004 |
| Control | NC |
| Location | Nuremberg |
| Origin | Deutschland |
| Delivery terms | on request |
| Shipment | on request |
| Price | On request |
Description
Changes and errors in the technical details and information reserved.

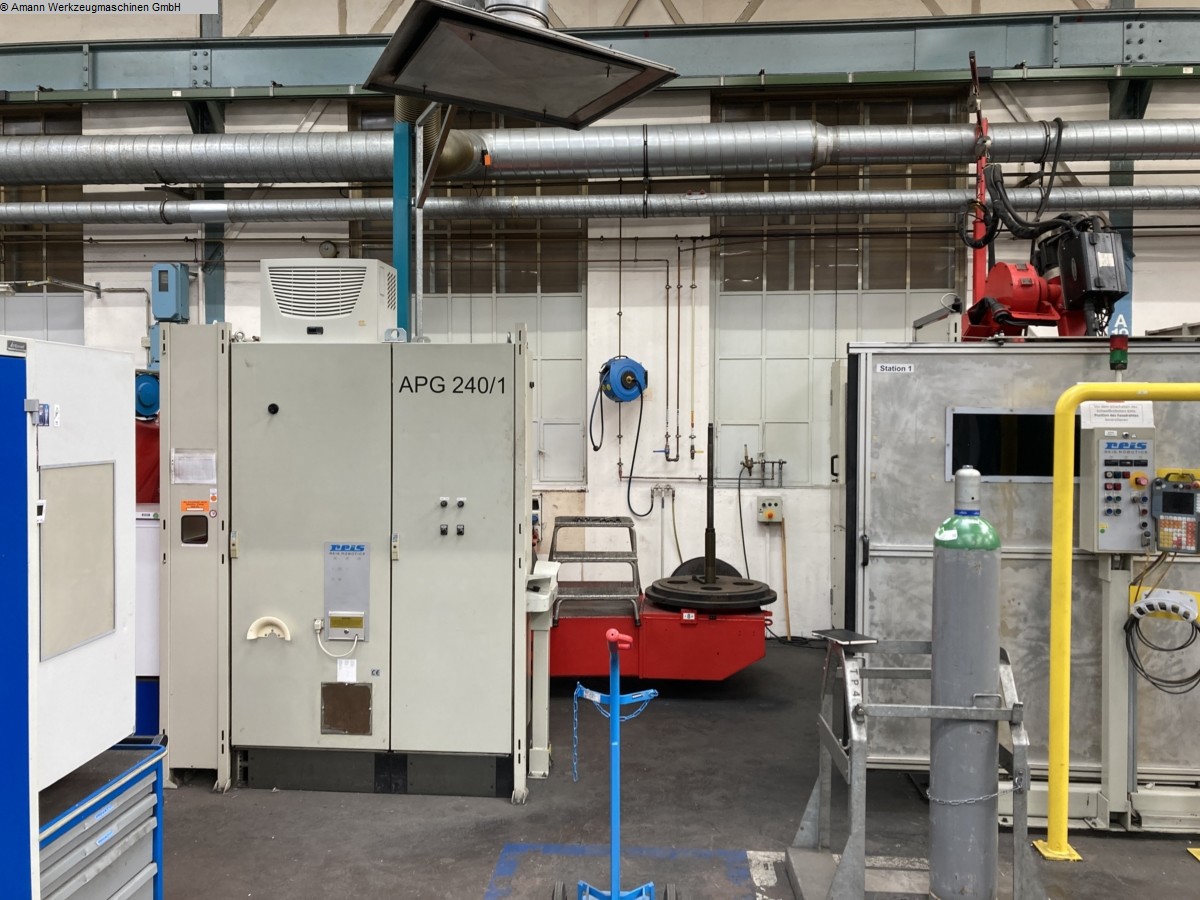

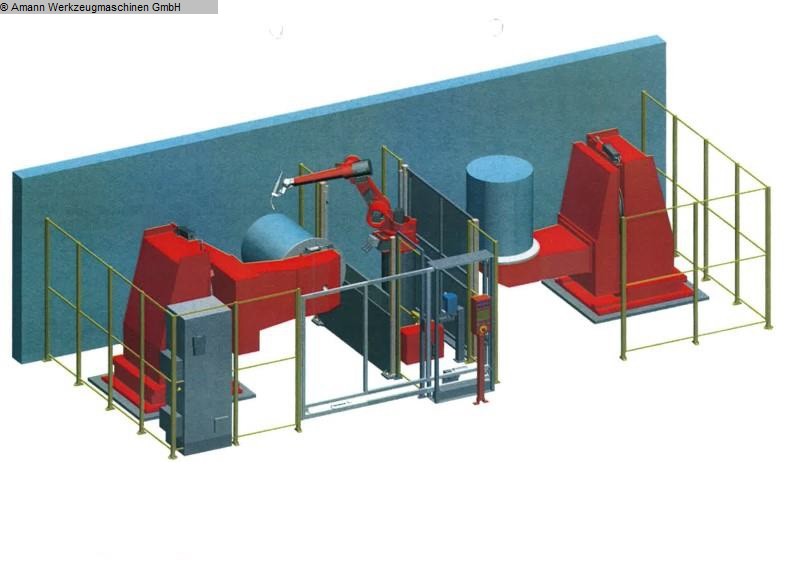

2-station welding cell with
- REIS SRV16L vertical articulated arm welding robot

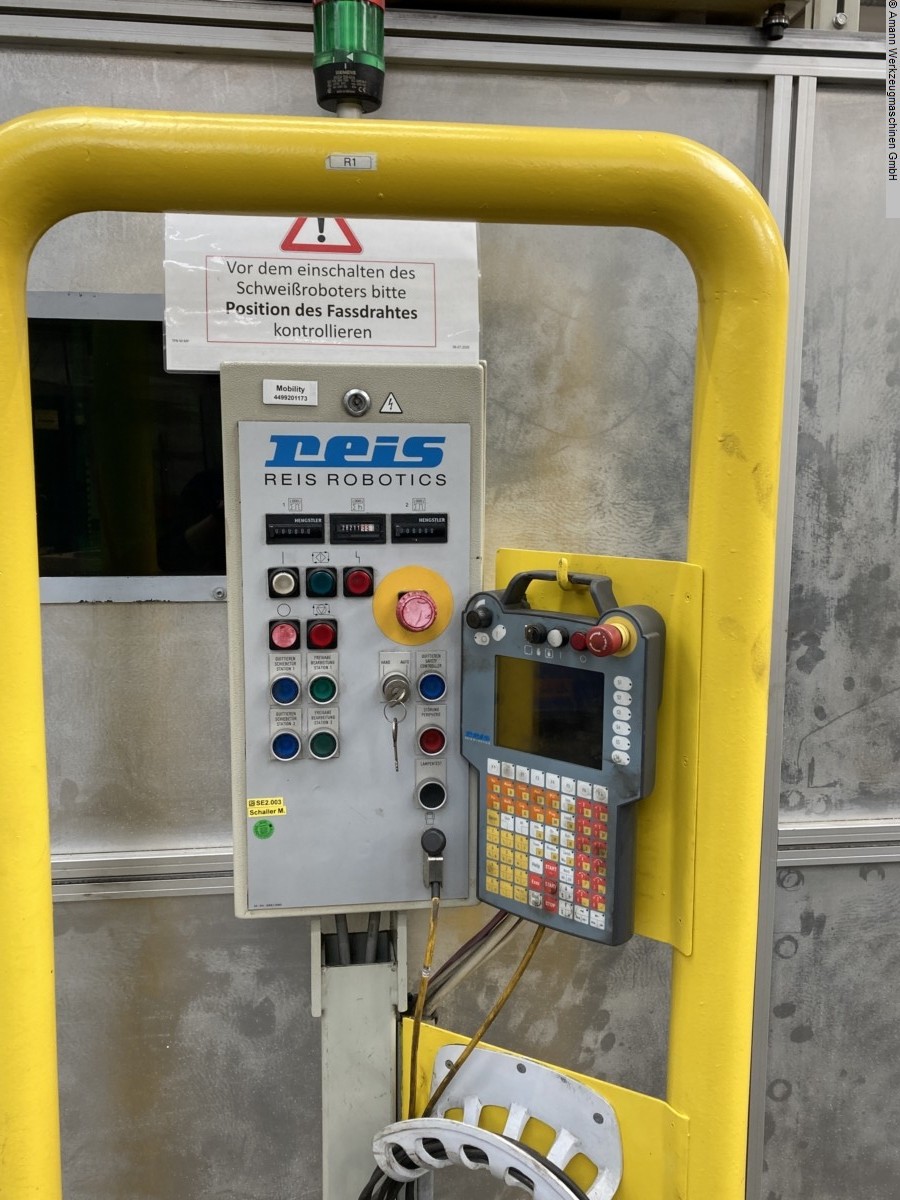

- RobotStar V control unit

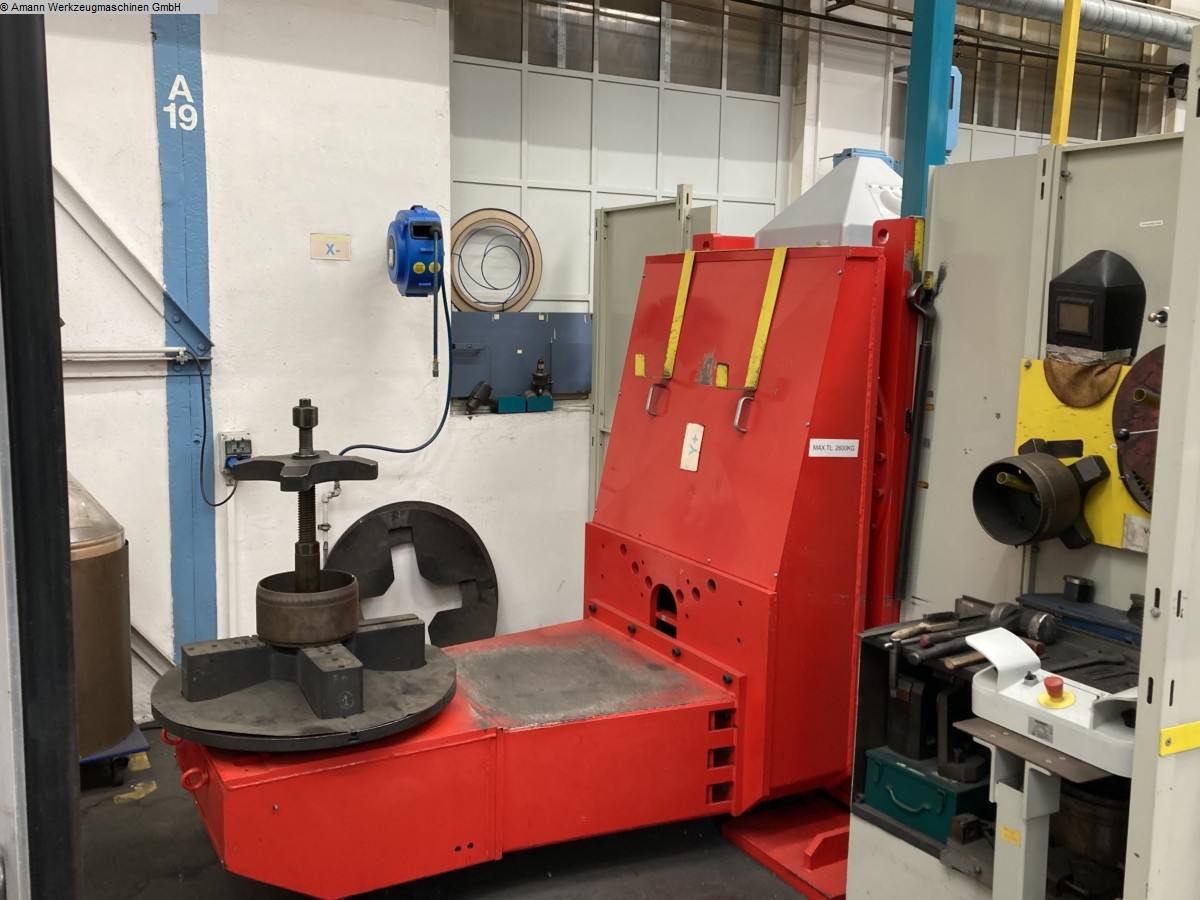

- 2x REIS RDS26 welding turntable

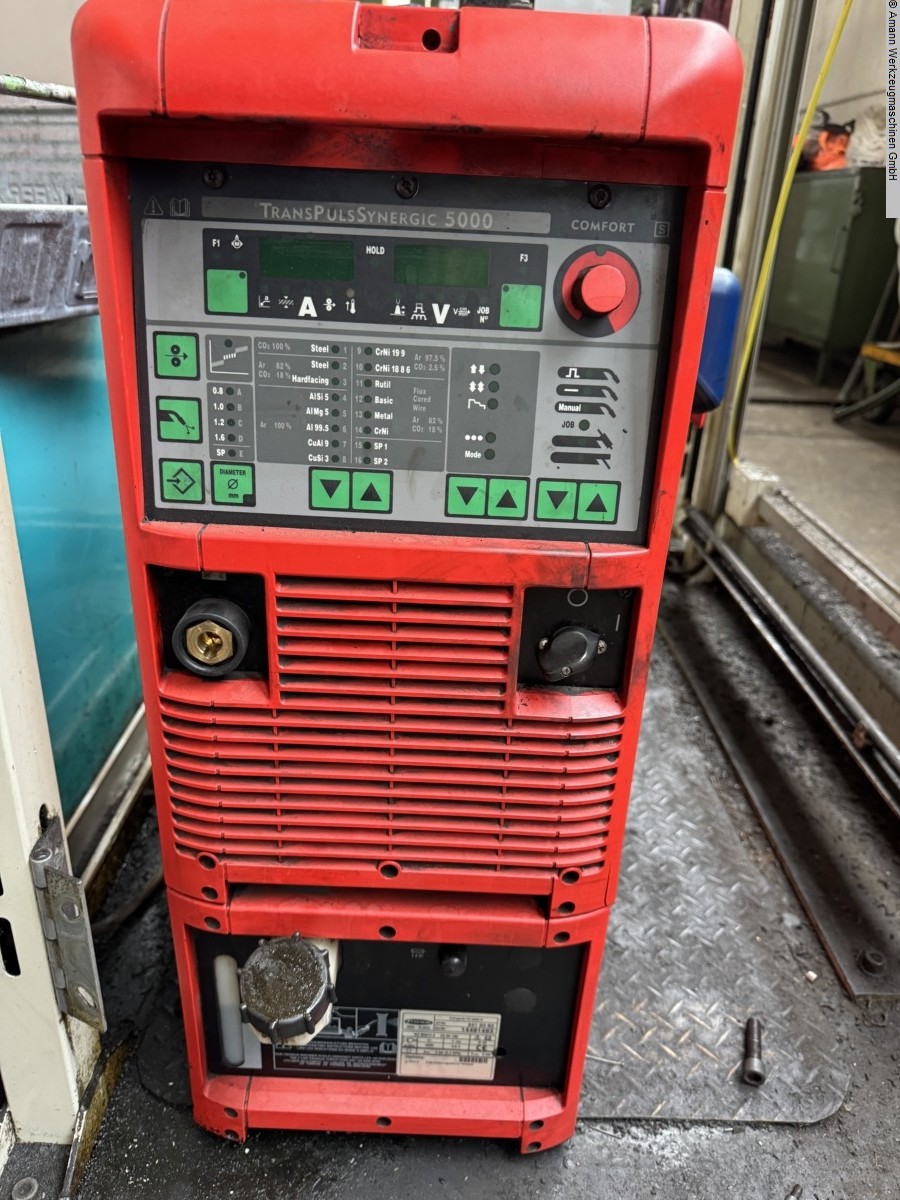

- Welder FRONIUS TransPulsSynergic 5000 with cooling unit
- Wire-feed-unit FRONIUS 4R/W/E Roboter
Changes and errors in the technical details and information reserved.
Technical details
| current capacity | 13,10 kVA |
| number of controlled axis | 6 |
| Payload | 16,00 kg |
| Robot | REIS - SRV16L |
| A1 - axis | 120 ° |
| A2 - axis | 195 ° |
| A3 - axis | 270 ° |
| A4 - axis | 360 ° |
| A5 - axis | 246 ° |
| A6 - axis | 720 ° |

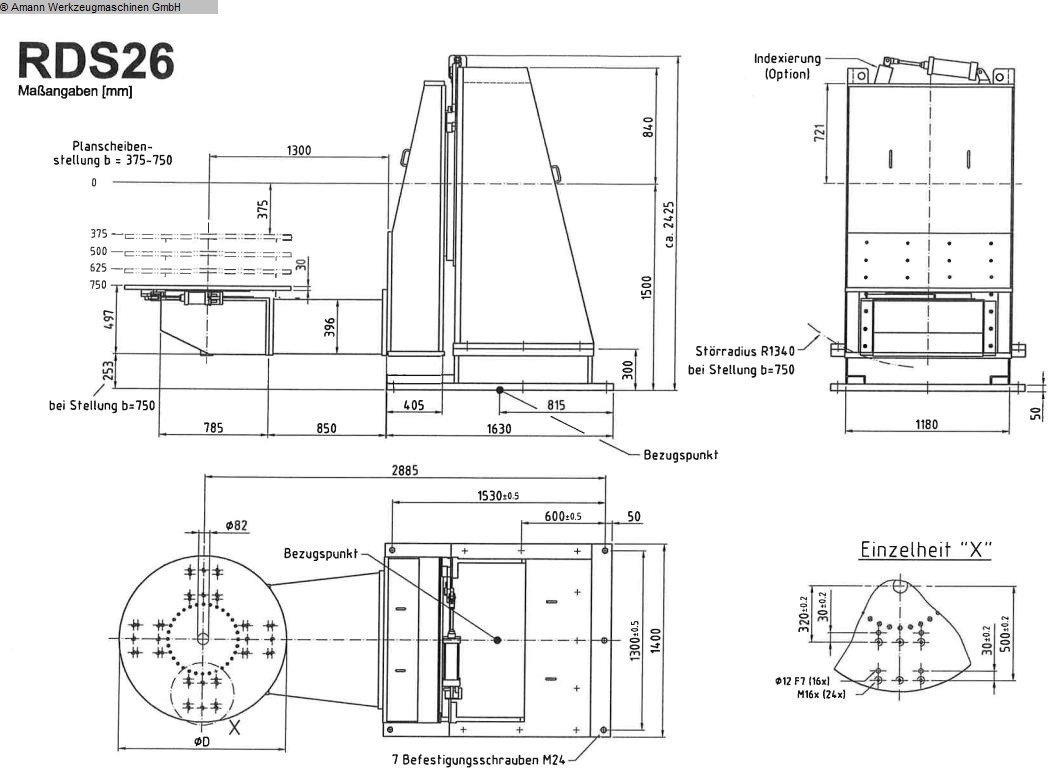

| Welding manipulator | REIS - RDS26 |
| workpiece weight | 2.600 kg |
| Rotating speeds | 50 °/sek. |
| table rotating | 360 ° |
| table swivelling +/- | 180 Grad |
| slewing speed | 15 °/sek. |
| welding unit | FRONIUS |
| wire dia. | 0,80 - 1,60 mm |
| Wire speed | 0,50 - 22,00 m/min |
| Control | |
| total power requirement | 20,00 kW |
| weight of the machine ca. | 18,00 t |
| dimensions of the machine ca. | 10,00 x 4,00 H4,00 m |
