Datasheet
Gear Grinding Machine
KAPP KX300P
| Machine ID | 1006-18020 |
| Category | Gear Grinding Machine |
| Make | KAPP |
| Type | KX300P |
| New in | 2012 |
| Control | CNC |
| Location | Factory |
| Origin | Deutschland |
| Delivery terms | on request |
| Shipment | on request |
| Price | On request |
Documents
Description
Changes and errors in the technical details and information reserved.
automated
Oil slinger station
EWAB workpiece storage
Hoffmann coolant filter system HSF 100 SE/K
Minimax fire extinguishing system
W+W air filter system

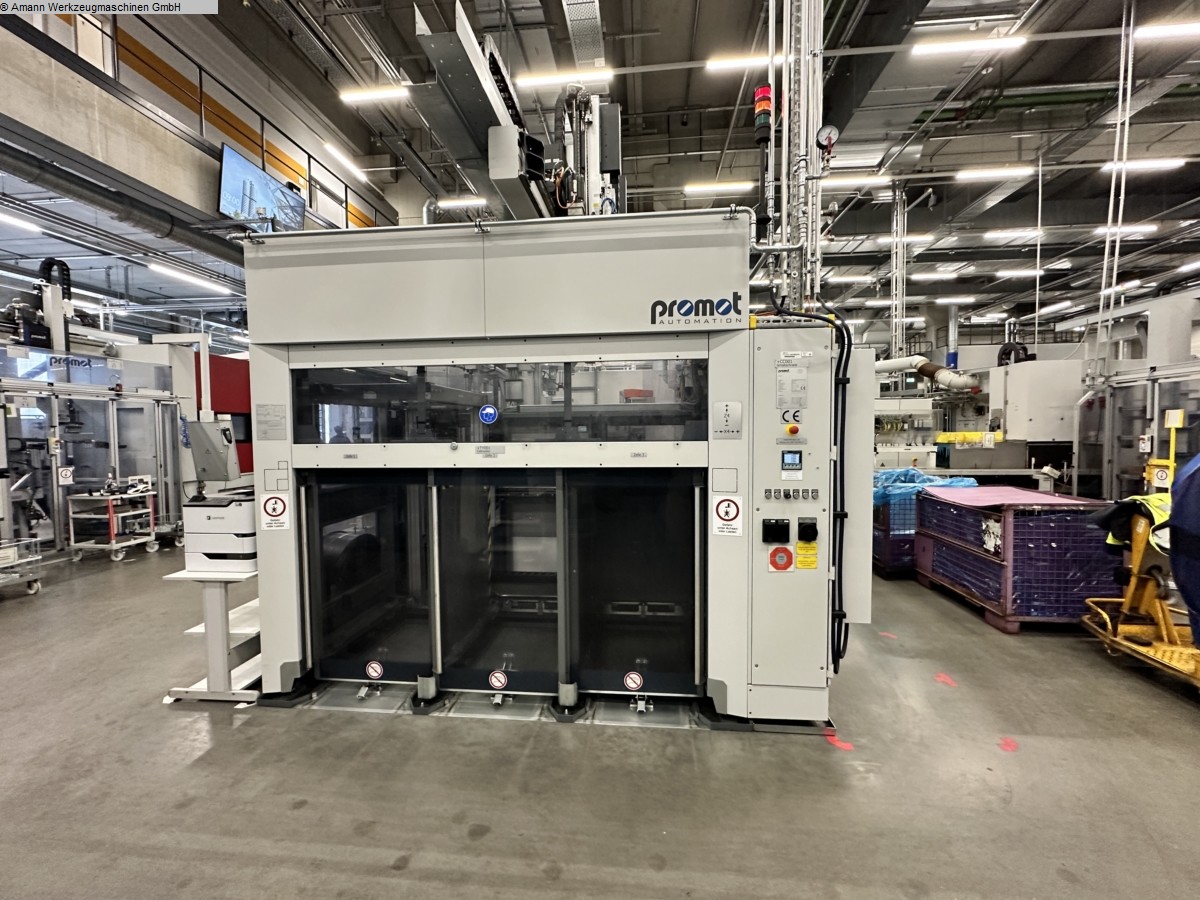

Promot Automation "Cellmaster" (3 cells) year 2019
Changes and errors in the technical details and information reserved.
Technical details
| max. wheel diameter | 300 mm |
| gear width | 320 mm |
| max. module | 10 |
| min. module | 0,5 |
| max.helical angle | 45 ° |
| frequency | 50 Hz |
| voltage | 400 V |
| main fuse | 125 A |
| x-axis | 270 mm |
| y-axis | 250 mm |
| z-axis | 320 mm |
| A - axis | +/- 45 ° |
| B - axis | 360 ° |
| C-axis | 360 ° |
| total power requirement | 89 kW |
| weight of the machine ca. | t |
| dimensions of the machine ca. | m |
