Datasheet
Band Saw - Automatic - Horizontal
KASTO twinA5
| Machine ID | 1006-17951 |
| Category | Band Saw - Automatic - Horizontal |
| Make | KASTO |
| Type | twinA5 |
| New in | 2009 |
| Control | NC |
| Location | Nuremberg |
| Origin | Germany |
| Delivery terms | on request |
| Shipment | on request |
| Price | On request |
Documents
Description
Changes and errors in the technical details and information reserved.

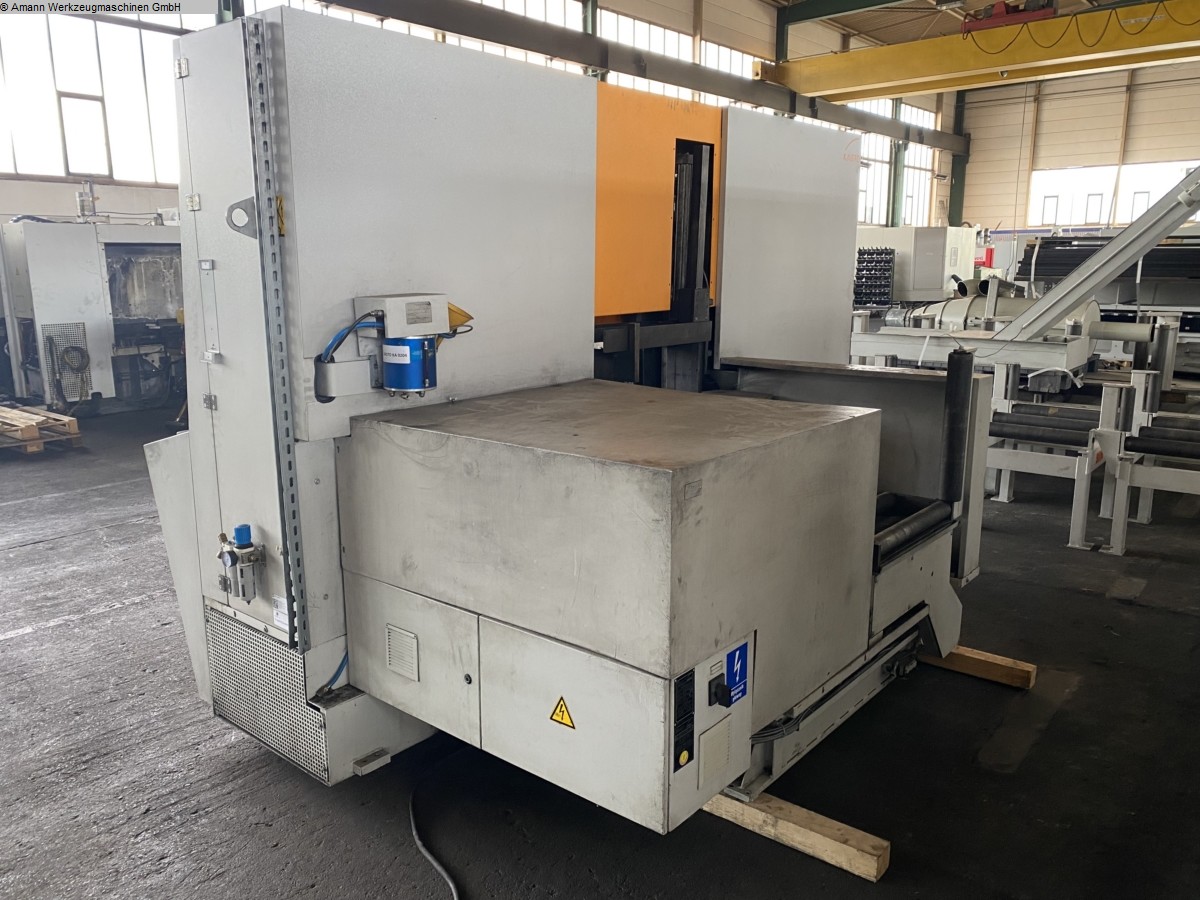

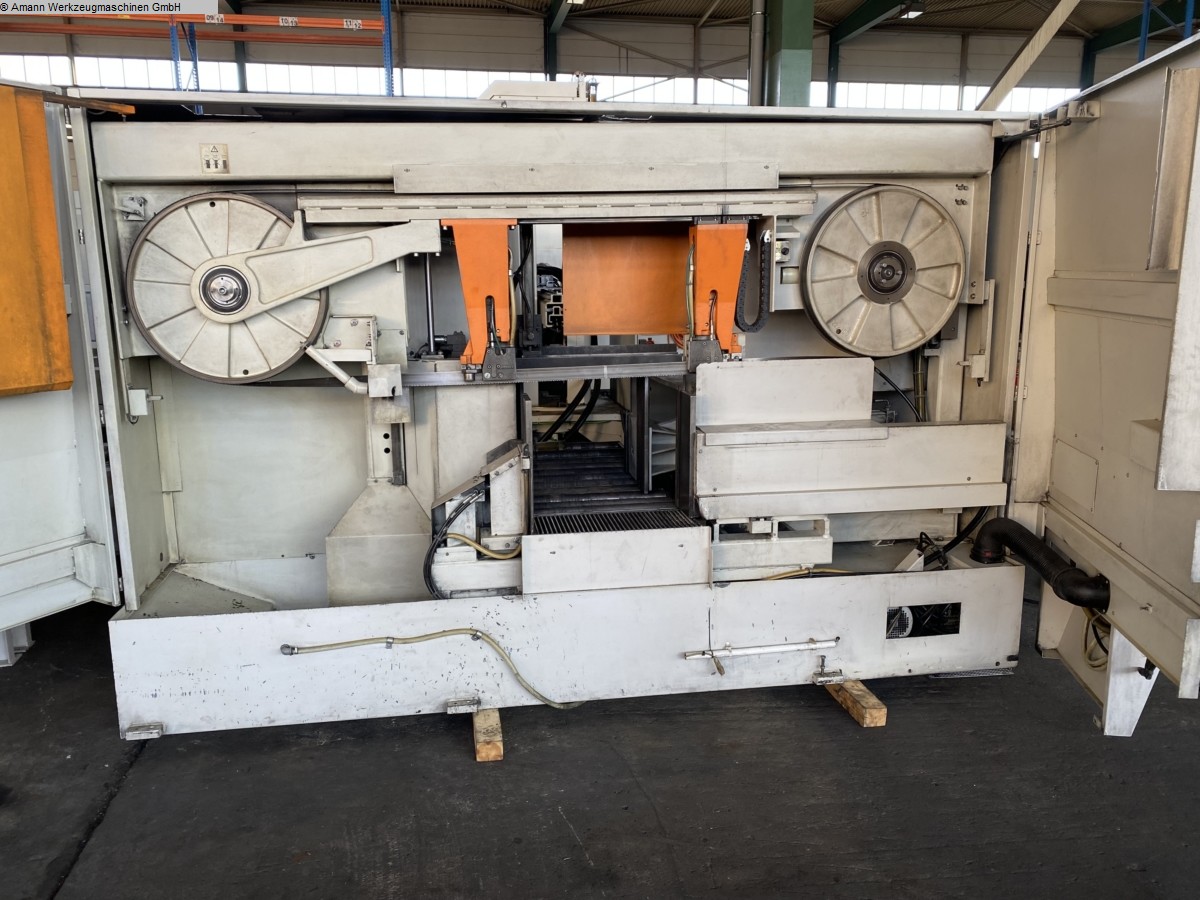

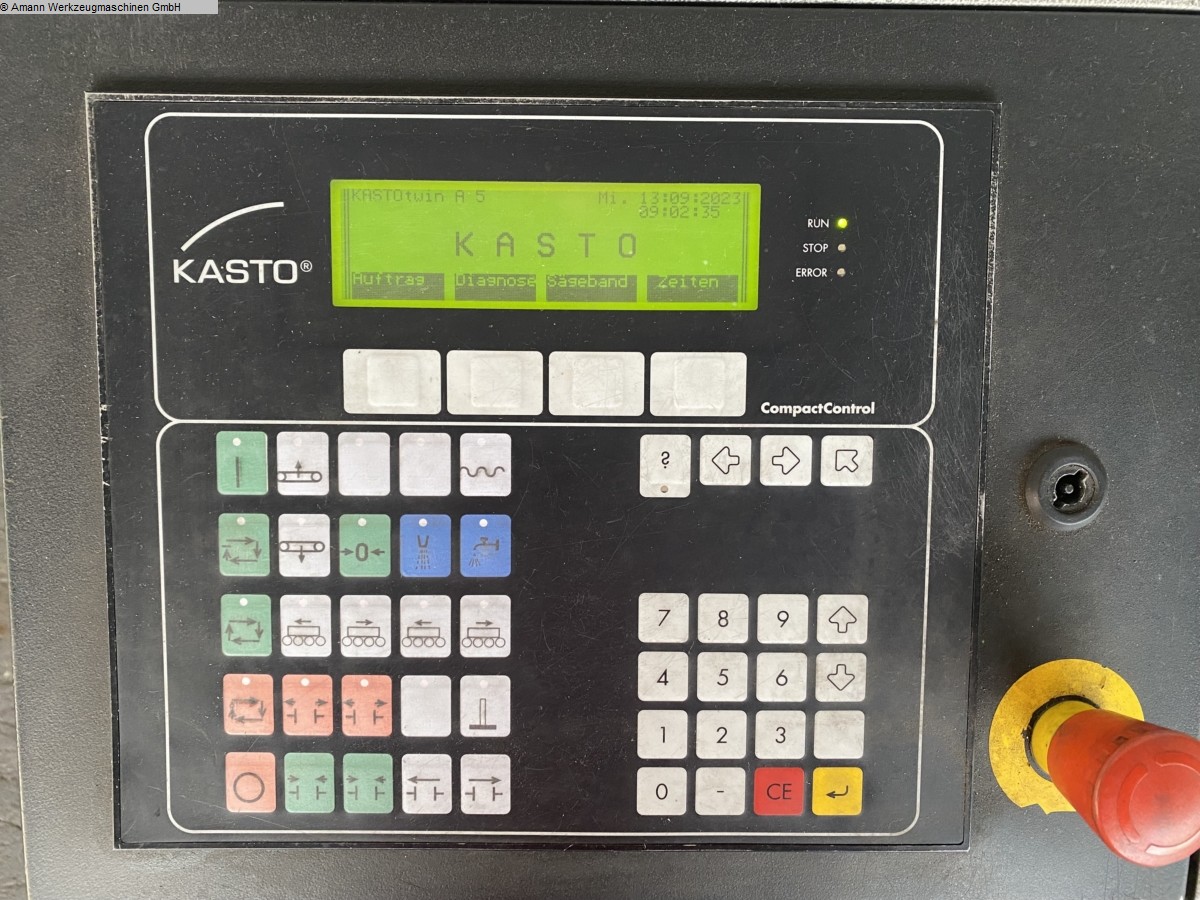

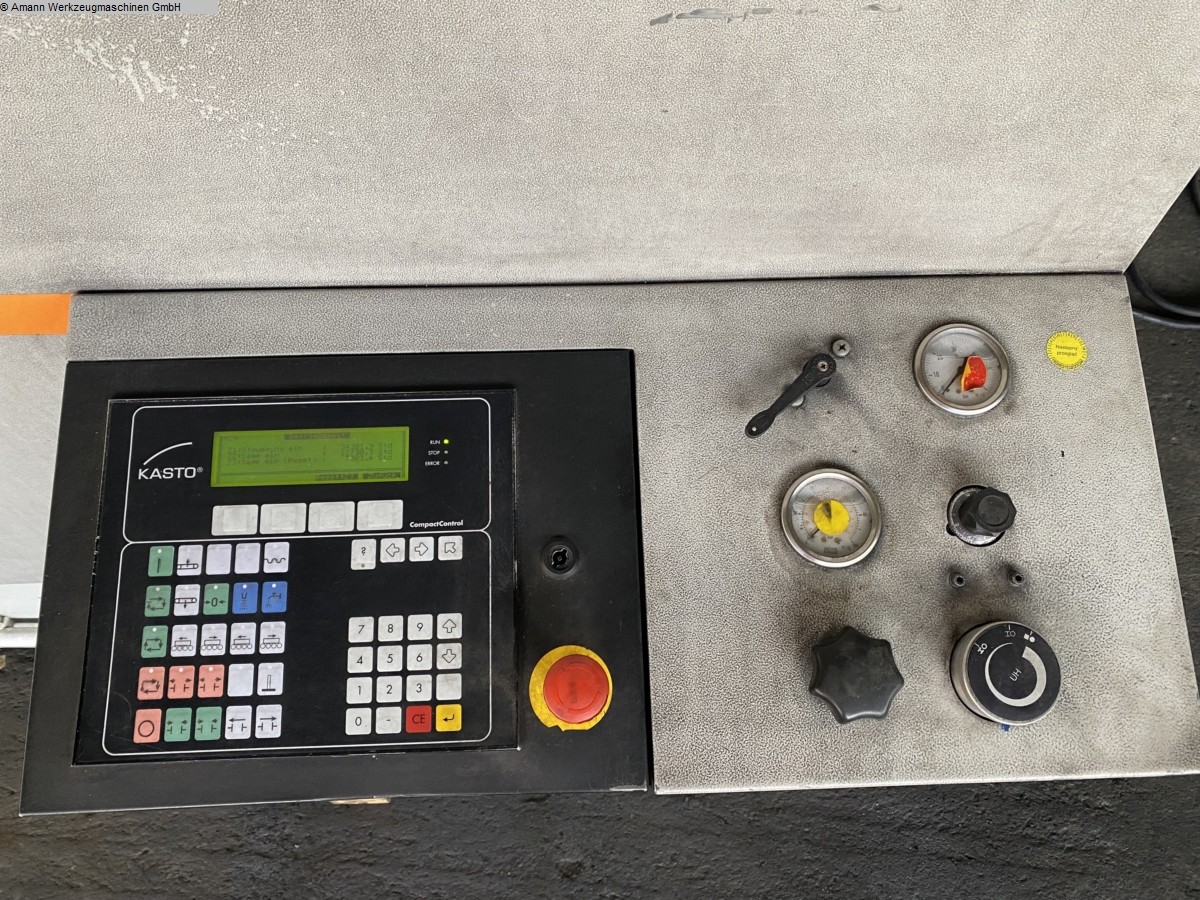

Automatic two-column band saw with KASTO Compact Control;

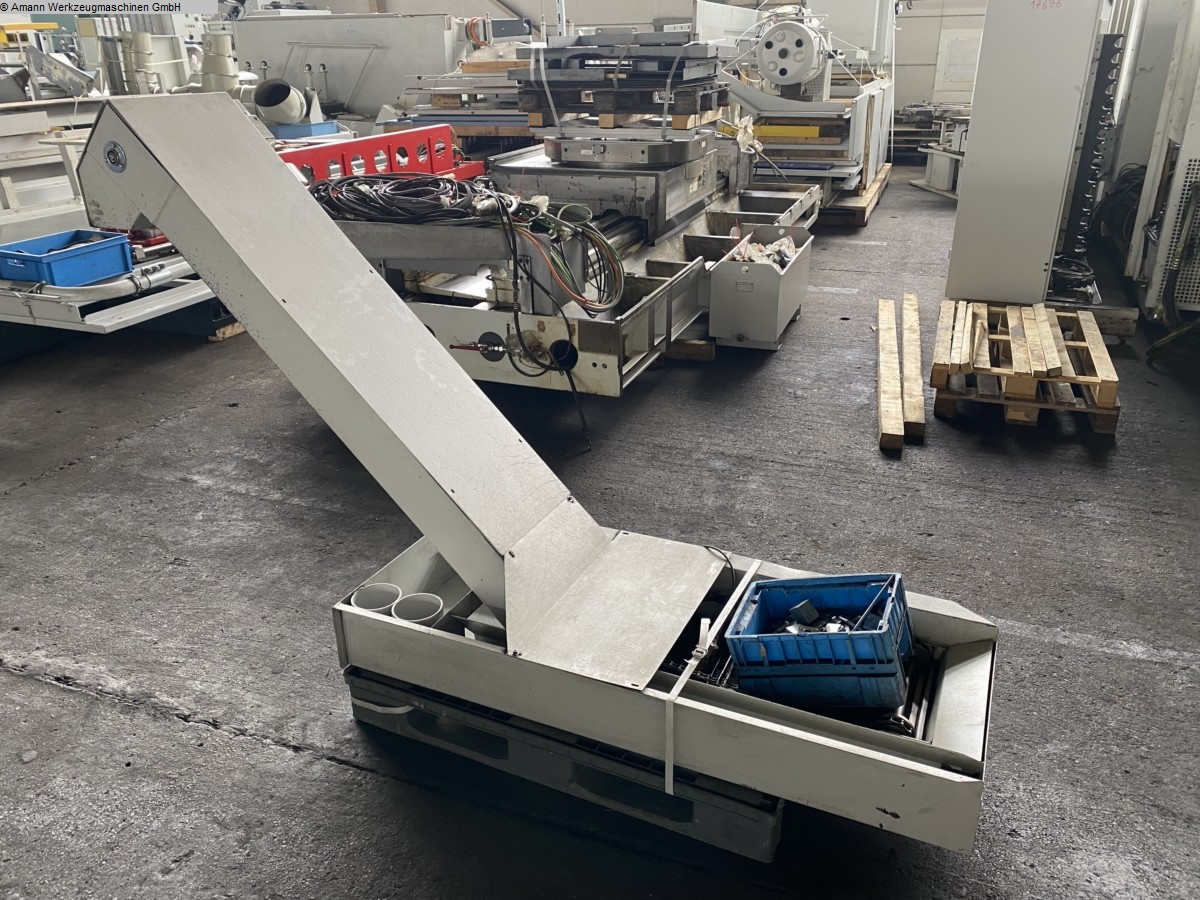

frequency-controlled saw band drive; chip conveyor;

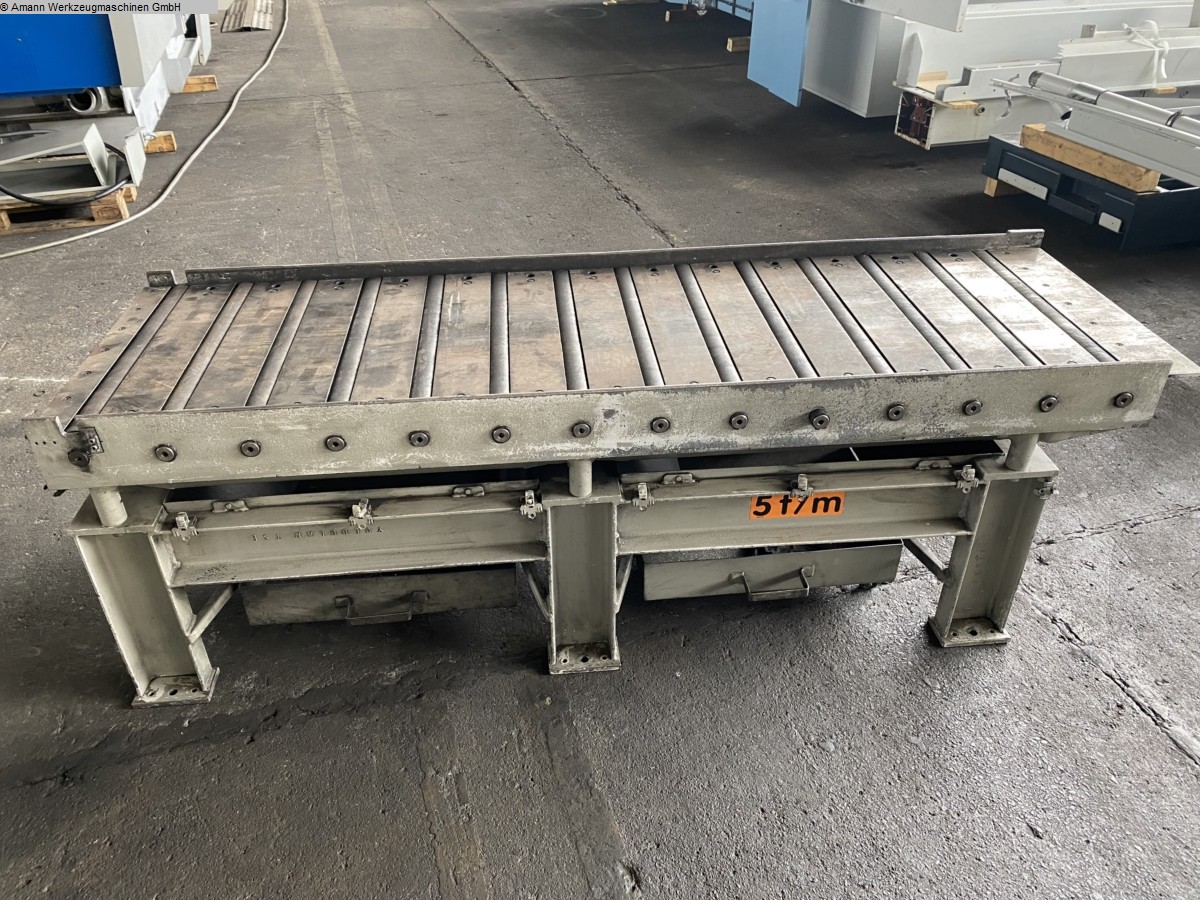

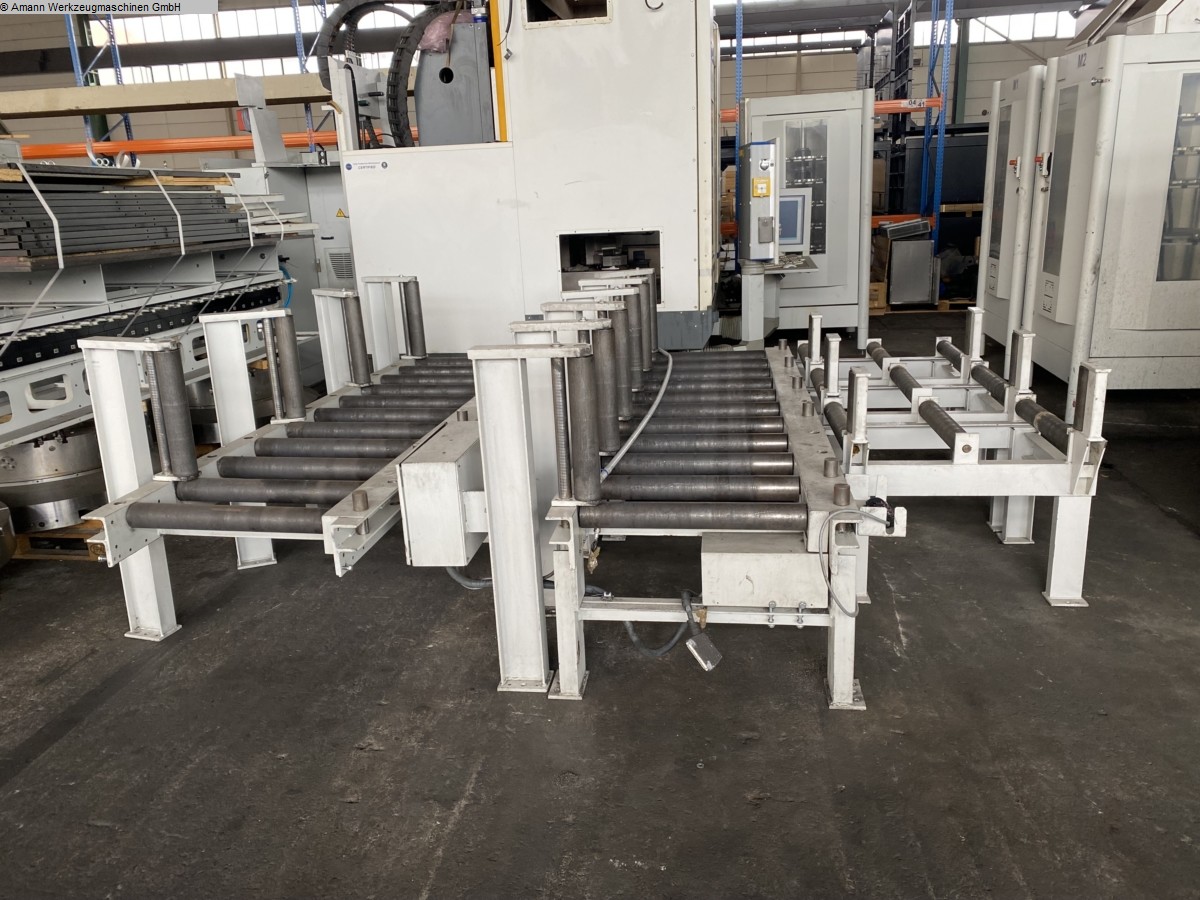

infeed roller-conveyor electrically driven (6m), 3x roll-conveyor 1m
and outfeed roller 2m; Machine can be inspected under power.
Changes and errors in the technical details and information reserved.
Technical details
| cutting diameter | 15 - 560 mm |
| dimensions of saw-band | 7.400 x 54 x 1,60 mm |
| Control | KASTO |
| material feed - single | 900 mm |
| multiple feeding length | max. 9.999 mm |
| cutting length min. | 6,00 mm |
| sawing motor | 5,50 kW |
| cutting speed | 13 - 127 m/min |
| height of material-table | 700 mm |
| total power requirement | 12,00 kW |
| weight of the machine ca. | 6,00 t |
| dimensions of the machine ca. | 3,70 x 2,50 x H2,50 m |
